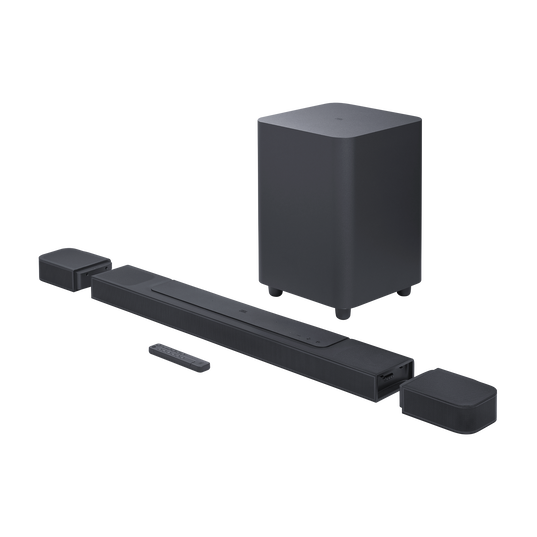

JBL Bar 1000

Ks 4,190,000.00
Color: Black

Description

Panoramic 3D surround sound without limits
Experience movies, music and games with sound that puts you right in the middle of the
action, thanks to 880W of total output power and thunderous bass from the 10” subwoofer.
The JBL Bar 1000 has MultiBeam™ and four up-firing drivers—two in the bar and two in
the detachable battery-powered surround speakers—to envelop you in a sphere of Dolby
Atmos® and DTS:X 3D surround sound with a wide, spacious soundstage with no need to
draw extra cables. You’ll never miss a word with our PureVoice technology, which makes
sure the dialogue is clear even when other sounds are at their loudest. When you’re ready
for some music, stream your favorite playlist from AirPlay, Alexa Multi-Room Music (MRM),
and Chromecast built-in™ and it’ll feel like the band is right there. Have a great night out
without leaving your living room.

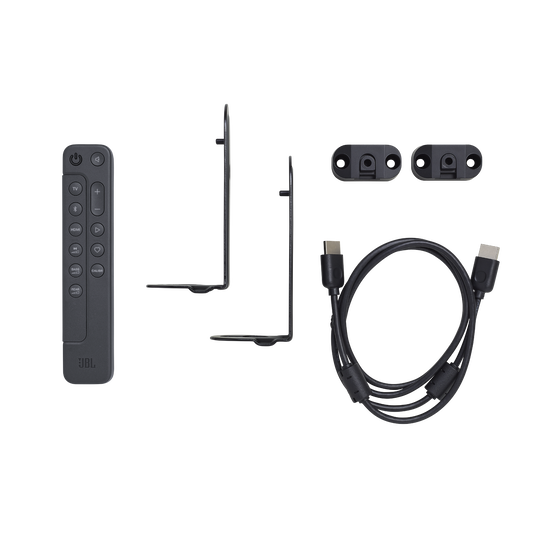

What’s in the box

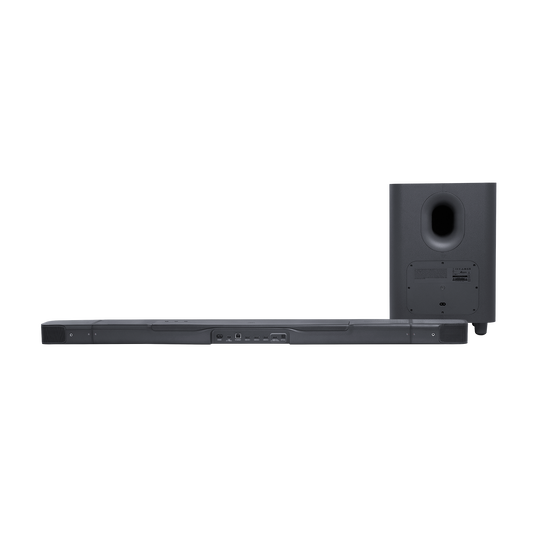

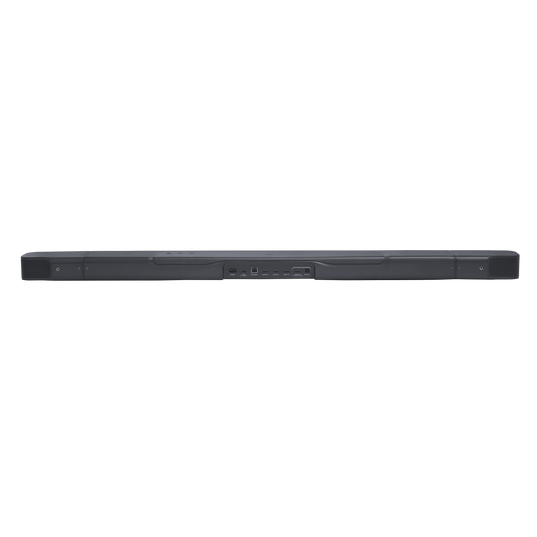

1x Main soundbar

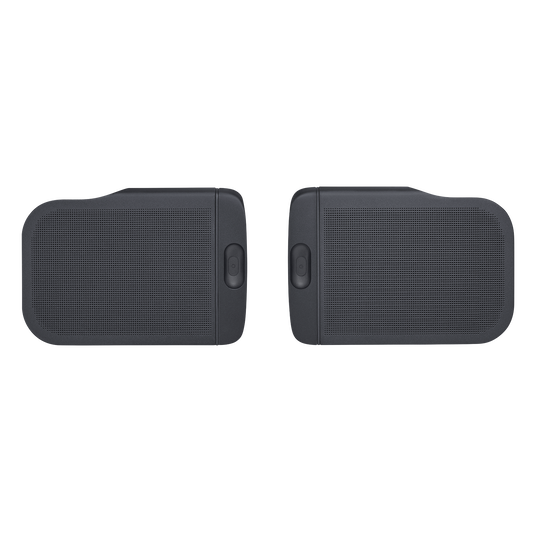

2x Detachable wireless surround
speakers
1x Wireless subwoofer
Remote control with 2 x batteries
Power cords (up to 8pcs depending on
region SKUs)
1 x HDMI cable
2 x L-shape wall-mount bracket (main bar)
+ 2 x U-shape wall-mount bracket (for
surround speakers) kit with screws
4 x Side caps
Quick start guide
Safety instruction and Warranty card
Wall mount template

Key Specification

General specification
Model: BAR 1000 (soundbar unit), BAR 1000 SURROUND (detachable speaker)
BAR 1000 SUB (subwoofer unit)
Sound system: 7.1.4 channel
Power supply: 100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%): 880W
Soundbar output power (Max @THD 1%): 440W
Surround speaker output power (Max @THD 1%): 2x 70W
Subwoofer output power (Max @THD 1%): 300 W
Soundbar transducer: 5 x (46x90)mm racetrack drivers, 3x 0.75” (20mm) tweeters, 2 x
2.75” (70mm) up-firing full-range drivers
Surround speaker transducer: 0.75” (20mm) tweeters, 2.75” (70mm) up-firing full-range
drivers
Subwoofer transducer: 10” (260mm)
Networked standby power: < 2.0W
Operating temperature: 0°C - 45°C
Lithium battery: 3.635V, 3283mAh
Detachable surround speaker playtime: up to 10 Hours (may vary according to content type
and volume level)
HDMI specification
HDMI video input: 3
HDMI video output (with Enhanced Audio Return Channel, eARC): 1
HDMI HDCP version: 2.3
HDR pass-through: HDR10, Dolby Vision
Audio Specification
Frequency response: 33Hz - 20kHz (-6dB)
Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other
versions, USB is for Service only.)
USB Specification (Audio playback is for US version only):
USB port: Type A
USB rating: 5V DC, 0.5A
Supported file format: MP3
MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate: 16 - 48 kHz
MP3 bitrate: 80 - 320 kpbs
Wireless specification
Bluetooth version: 5.0
Bluetooth profile: A2DP 1.2, AVRCP 1.5
Bluetooth transmitter frequency range: 2400MHz - 2483.5MHz
Bluetooth transmitter power: <15dBm (EIRP)
Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11
Channels, Europe and others 13 channels)
2.4G Wi-Fi transmitter power: < 20dBm (EIRP)
5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 -
5.825GHz
5G Wi-Fi transmitter power: 5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.47 - 5.725GHz
<20dBm, 5.725 - 5.825GHz <14dBm (EIRP)
2.4G wireless frequency range: 2406 - 2474MHz
2.4G wireless power: <10dBm (EIRP)

Features
True Dolby Atmos®, DTS:X, and MultiBeam™ surround sound
Immerse yourself in theater-quality 3D sound. With two up-firing drivers in the main bar and two more in the detachable speakers, the JBL Bar 1000 delivers true Dolby Atmos® and DTS:X together with MultiBeam™ for an enhanced 3D surround sound experience.

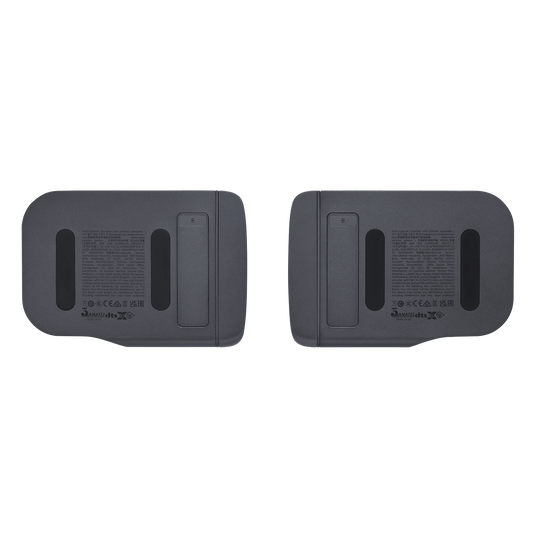

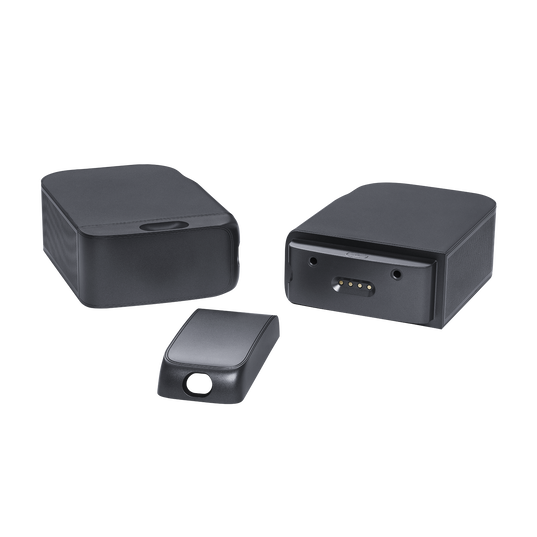

Real surround sound with detachable surround speakers
Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.

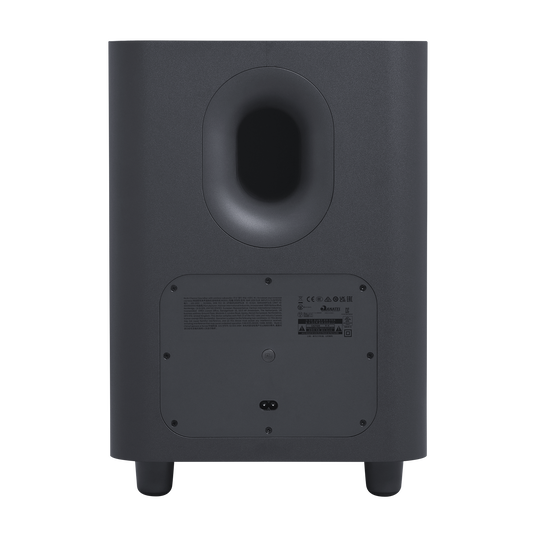

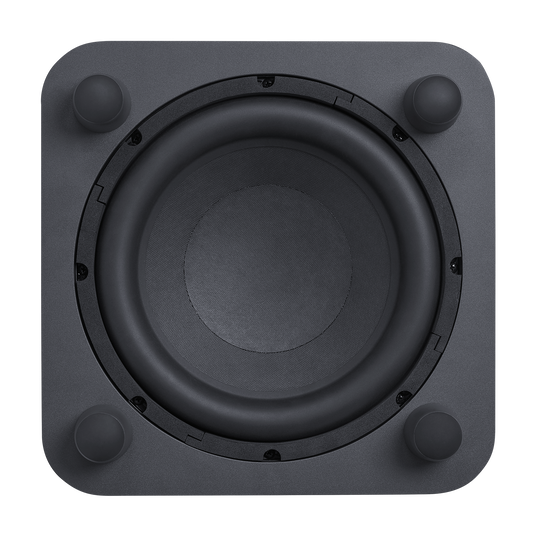

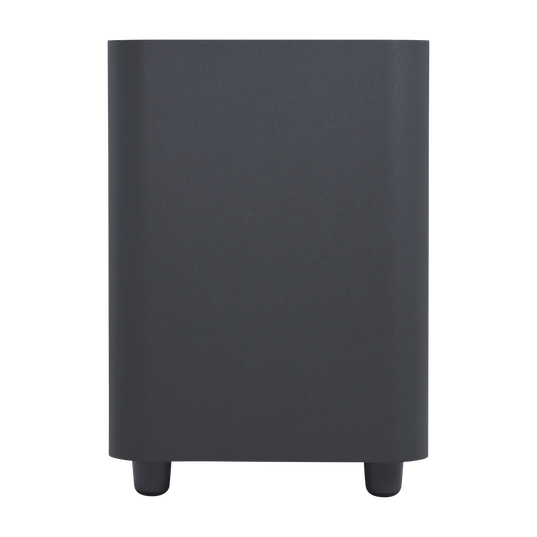

10” wireless subwoofer
Thrilling, precise bass from a mighty 10” wireless subwoofer brings the excitement to your action movies and the emotion to your music
PureVoice dialogue enhancement technology
PureVoice technology uses our unique algorithm to optimize voice clarity to ensure you never miss a word of dialogue, even when the surround effects are at their peak
880W output power
With 880 watts of total system power the JBL Bar 1000 transforms your movies, music and games into immersive sound experiences and pulls you into the middle of the action.
Built-in Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™
Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features
Works with voice assistant-enabled speakers
Simply link the JBL Bar 1000 with your voice assistant-enabled device and you can instantly ask Alexa, Google Assistant, or Siri to stream all your favorite music to the soundbar.
HDMI eARC with 4K Dolby Vision pass-through
Enjoy uncompressed Dolby Atmos surround sound through a single HDMI cable thanks to the HDMI eARC connection. The three HDMI input connections also offers 4K video quality from a compatible video player or gaming console
Easy sound calibration
Every room is different. Our calibration feature ensures that the JBL Bar 1000 delivers the best 3D surround effects for any interior and room layout.
JBL One App
Customize EQ and control all of your compatible speakers with a single convenient app. The JBL One app helps you easily set up the soundbar, personalize settings, and browse the integrated music services to find your new favorite song.
